Galvashield® Fusion® T2

Galvashield® Fusion® T2

Fusion Technology
Self-powered two-stage anode for proactive protection of reinforced concrete structures.

Galvashield® Fusion® T2

Galvashield® Fusion® T2 is the next generation of cathodic protection for reinforced concrete that combines the power of impressed current cathodic protection (ICCP) with the maintenance-free performance of galvanic anodes.

Galvashield® Fusion® T2 provides two-stage protection within a single anode unit embedded in a drilled hole.

  • Stage 1 ‐ an intense burst of self-generated impressed current strikes the reinforcing steel and passivates rebar corrosion
  • Stage 2 ‐ after the impressed current phase, galvanic anodes shield the structure from future corrosion damage

The anode selection and spacing are based on the specific condition of the structure. Final designs use standard cathodic protection principles in accordance with ISO BS EN 12696 and NACE RP0290 or can be based on achieving cathodic protection or passivation in Stage 1 and cathodic prevention in Stage 2.

These cylindrical anodes are quickly and easily installed into holes drilled in mechanically sound concrete and electrically connected to adjacent reinforcing steel to proactively protect actively corroding reinforcing steel. For full installation instructions, refer to the technical data sheet.

Grout Properties

For optimum performance, use Galvashield® Embedding Mortar when grouting anodes in drilled holes to provide an ionically conductive path to the substrate.

Features and Benefits

  • Proven Technology: ICCP electro-chemical treatment and alkali-activated galvanic anode technologies have decades of demonstrated performance.
  • Long Lasting: Can be designed to provide corrosion protection for up to 30 years or more without the need for maintenance with an option to have ICCP Phase 1 repeated at any time in the future if desired.
  • Targeted Protection: Ideal to provide protection to targeted areas identified as high corrosion risk, such as hot spots.
  • Economical: Shortens the construction schedule due to fewer anodes being required compared to traditional galvanic anodes.
  • User Friendly: Galvashield® Fusion® T2 is a single unit two stage system with no external power requirements.
  • Low Maintenance: Galvashield® Fusion® T2 operates automatically once installed, reducing access requirements, time, and cost.
  • Measurable Performance: While not critical for the long term operation of the system, the site performance can be measured and validated if required.

Anode Sizes



Unit Size

(diameter x length)

Minimum Hole Size

(diameter x depth)

T2 Standard

Large capacity two stage anode

46 x 105 mm
(1 3/4 x 4 1/8 in.)

50 x 135 mm
(2 x 5 5/16 in.)

T2 Slim

Small diameter for lower steel densities and faster installation

29 x 135 mm
(1 1/8 x 5 3/8 in.)

35 x 165 mm
(1 3/8 x 6 1/2 in.)

T2 X

Two stage anode for extreme environments

46 x 130 mm
(1 3/4 x 5 1/8 in.)

50 x 160 mm
(2 x 6 1/3 in.)

Note: Fusion® T2 is also availabile in custom dimentions to meet customer requirements

Fusion® T2 Slim

Galvashield Fusion T2 Slim

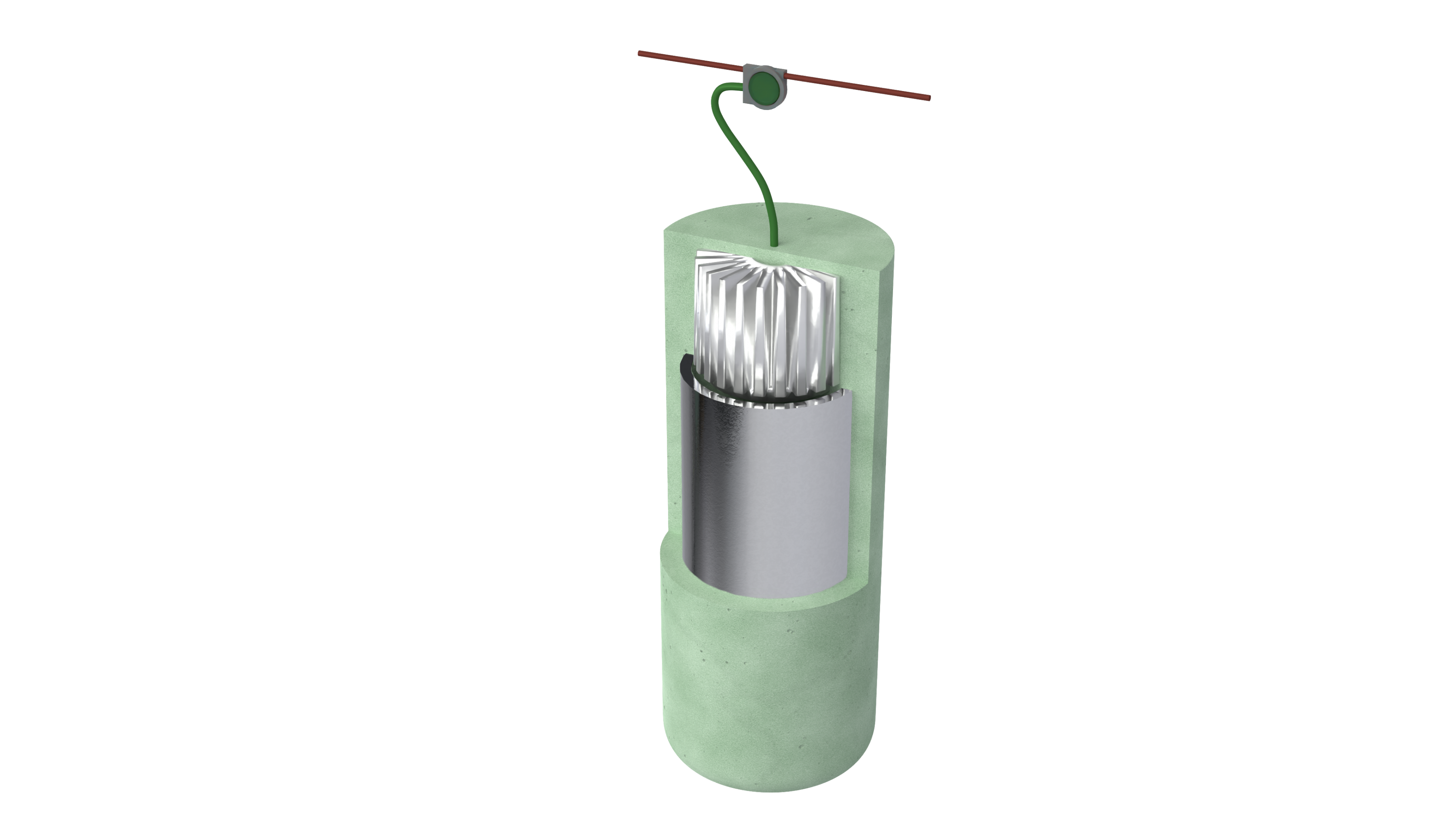

Fusion® T2 Standard

Galvashield Fusion T2 Standard

Fusion® T2 X

Galvashield Fusion T2-X


  • Apartment and condominium balconies
  • Bridge decks, piers, abutments, piercaps and girders
  • Parking decks, columns and beams
  • Piers, wharves, piles, pile caps and beams in a marine environment
  • Highly corrosive environments such as breweries, pulp and paper and industrial facilities
  • Swimming pools and concrete tanks
